Hardware line

A complete hardware mixing/mastering studio

Visit us at 137th International AES Convention

Los Angeles Convention Center

Thursday, October 9 - Sunday, October 12 2014

Booth n.1632

(click to enlarge)

Track, sum, mix, process.

- 8 input channels, with link option for more units

- 8 individual output channels

- stereo mix buss

- British input and output transformers

- class A amplifiers

- line and mic level inputs

- passive emphasis networks (per-channel, affect sound and saturation)

- output pads

- three rack units

- "Rock" sound

- XLR and TRS individual ins and outs



Controls (per channel):

- output pad (reduces out level when saturating channels)

- stepped gain

- emphasis engage ("sound")

- phantom power

- phase reversal

- internal level bi-color led

- volume

Controls (stereo buss):

- master volume

- stereo link (couples of channels)

Introductory MSRP on a few units only: 1800 euro (+VAT, taxes, shipment).

(Please consider a starting delivery time of 4 weeks).

Send an email to book one unit.

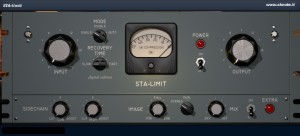

STA-limit

From a classic tube compressor.

- transparent compression

- extremely simple and effective

- "in your face" sound

- multiple release modes, including a special "auto" mode

- extra unit for sidechain and stereo image control

Available now...

A possible realization

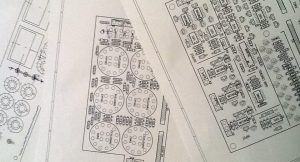

MS4 - DIY Compressor Kit

Hardware stereo PWM mono/stereo compressor.

In collaboration with italian magazine "Computer Music Studio" (www.compmusic.it)

- stereo balanced inputs/outputs

- stepped controls

- internal sidechain equalizer (low and high ranges)

- external sidechain input

- control on compression curve

- feed-forward and feed-back modes

- peak and rms modes

Avaliable now...

NEW - Optional case kits with double LED meter available

FAIR67
Fair compression...

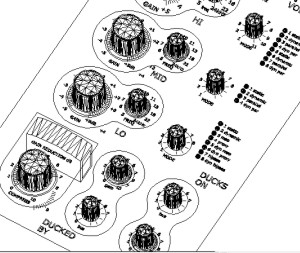

STRIPBUS NEW v.3!

A free update for existing users.

- new consoles

- full featured channel strip

- multiple ducking busses

- new filters

- dynamics control

Coming...

Features:

- 12 stereo compression models (opto to vintage to modern)

- 12 stereo distortion modes (linked to compression)

- stereo with a single set of controls

- balanced inputs/outputs

- analog-computing modeling

- internal sidechain EQ (highs and lows)

- external (line level, balanced) sidechain input

- 16 VCAs inside

- feed-forward and feed-back compression

- limiting

- peak and rms detection

- special compression modes

- huge needle meter for compression

- bi-color led indicator for distortion

- 3 rack units

Details...

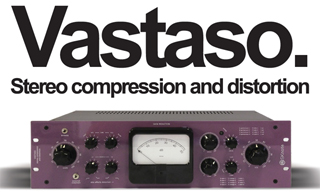

Vastaso - stereo compression/distortion with external sidechain

1899$ (+ taxes and shipment)

Catena is a stereo routing, splitting, mixing, multiband console in 3 rack units. Also includes an internal mid/side matrix for mixed stereo/mid-side processing. Five stereo channels are available. Main stereo input can be split and sent to the next channel and so on. Stereo returns are split and sent again (series mode) or main stereo input is sent to every stereo channel.

Stereo returns are mixed through stereo volume controls and sent to individual outputs. Per-channel mute/bypass controls.

In multiband mode, main stereo input is split into four frequency bands with fine crossover frequency controls (24 dB/octave). Each band is sent to individual send outputs, mixed back through volume controls, sent to individual outputs. All kinds of parallel/series/multiband/mid-side processing arrangements are available for hardware chains.



Features:

- four stereo split sections with sends

- series (independent channels) and parallel (main input to all channels)

- five stereo channels with stereo volume controls (stepped)

- four frequency bands with stepped fine controls (16 steps)

- internal mid-side matrix

- stepped controls

- active inputs and outputs

- XLR inputs and outputs



Catena - multiband stereo processor

1499$ (+ taxes and shipment)

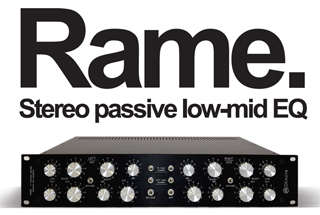

With a discrete signal path and input and output transformers, Rame is a passive, stereo, low-mid range equalizer.

Including custom inductors and transformers, Rame also includes an internal mid/side encoding/decoding matrix for mid/side equalization. Left and right channels can be used as a stereo couple, two mono channels, a mid/side couple.

The mid-range section includes two selectable filters (boost and cut) with independent frequency selection.

The low-range section includes two frequency bands (boost and cut), with a shared frequency selection.

Cut acts on a slightly higher frequency range than boost. Used together, boost and cut add a good amount of low frequency content while keeping the signal clean.

The low section includes a special parallel, passive limiter. Increase boost and saturation to get sustain on low-range. Increase saturation to get harmonics.



Features:

- passive, custom inductors and transformers

- one stereo, two mono or one mid/side channel

- parallel equalization

- eleven frequencies available for each filter

- input and output transformers bypass controls

- 100% wet switches for parallel processing

- true-bypass switches

- internal mid/side matrix

- all stepped controls

- FET gain stage (0dB in to out)

- XLR and TRS inputs (combo) and outputs



Rame - stereo passive low-mid EQ with mid-side and passive limiter

1299$ (+ taxes and shipment)

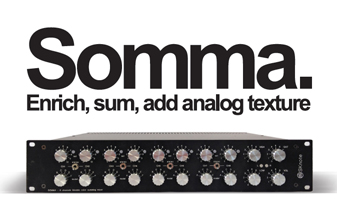

Built around the old "analog computing" technique, Somma is designed to provide deep control on the dynamic harmonic content of audio tracks, stems, mixes, masters.

Somma features eight balanced input channels with individual saturation model selection (six independent configurations available on each channel) and saturation level controls, providing deep control on the amount of dynamic harmonic enhancement and on the behavior of each channel.

Deeper control is available on the stereo bus, with two separate bands of harmonic control (low band for punch and high band for air), saturation and output level controls.

Several units can be chained together to expand the system and make more channels available.

Note: this is a hardware device, available as a ready device or as a diy kit.

Note: delivery time about one week.

Download the brochure

Somma - color summing mixer

1299$ (+ taxes and shipment)



Including a fully discrete signal path and input and output transformers, Ferro is a passive stereo device (no mains) that dynamically adds mid and high frequency range presence, weight and open-ness to tracks, stems, mixes and masters.

Including custom inductors and transformers, Ferro also features a switchable inter-channel (left-right) coupling control to set the amount of galvanically insulated interaction between the channels, happening in the selected range.

Left and right channels can be used as mid-side channels (adding an encoding and decoding stereo matrix, easily available in the digital audio workstation) or as two separate mono bands by chaining them.

Note: this is a hardware device, available as a ready device or as a diy kit.

Note: delivery time about one week.

Download the brochure



Includes:

- internal Mid-Side matrix for Mid-Side EQing

- Mid-Side balance stepped rotary switch

- FET gain unit

- true bypass for "un-powered" mode



Ferro - parallel passive stereo air EQ with internal mid-side matrix

1199$ (+ taxes and shipment)

DDD dimension chorus

A remake

VST, AU, RTAS

available now

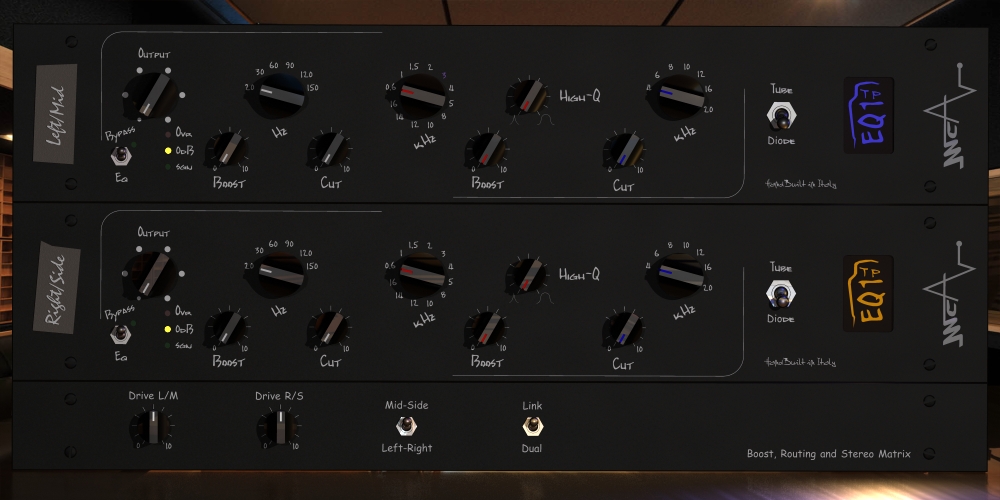

MCAudioLab EQ1

Solid State and Tube power supply edition

VST, AU

available now...

EQ1 - passive EQ

VST, AU and soon RTAS

29.99$

FREE with a hardware unit from www.mcaudiolab.com

ROUNDTONE new v.3!

Multitrack Tape Machine emulation

with Tape Delay and Enhancer

available now...

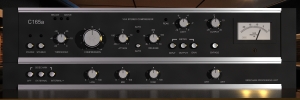

C165a VCA compressor with sidechain

Auto mode, from transparent to insanely fast

VST, AU, RTAS

available now...

XTrim mixing tools

Level, stereo image, tone, time, pitch. VU metering

VST, AU, RTAS

available now...

Rev250 reverb

Vintage and modern modes

VST, AU, RTAS

available now...

MATTERTONE

Multiband, level independent, envelope shaper

available now...

GRASSO

Saturation and Dynamics

From subtle to enhancement to distortion

Level independent dynamic control, integrated dynamic equalisation, weak power supply.

available now...

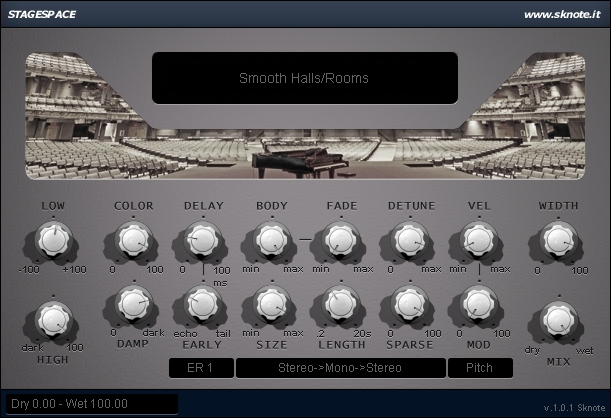

STAGESPACE

Algorithmic reverb

Clean, deep, wide. Simple and powerful.

available now...

THREED

Mono to stereo, stereo enhancement

Simple and powerful. Frequency dependent control.

Align multitracked guitars and more.

available now...

GTS-39

Tube limiting and saturation from '50

available now...



Strip unit

Bus unit

STRIPBUS v.2

Full console emulation bundle, with five stereo bus compressors

Two plugins:

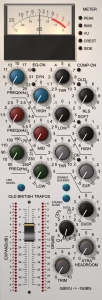

"Strip" (NEW v.2 available):

  • NEW - four models: "A Tube", "B Solid state", "C Solid state", "D Tube"

  • input stage saturation

  • hipass, parametric mids, lowpass (multi-mode, static and dynamic)

  • VU and peak combined metering

  • bypass-all menu for fast wet-dry comparison (bypasses all plugin instances from a single menu)

  • auto ducking mode

  • NEW - inter-channel crosstalk

  • NEW - global headroom control

  • NEW - channel level offset (adapt the instance to input level)

  • NEW - optional background noise

  • NEW - eight desks (grouping) available

"Bus" (NEW v.2 available):

  • dual mode: "Tube", "Solid state"

  • two compressor models in two variations

  • new "Opto 2A" compressor

  • stereo bus compressor (with 4x oversampling)

  • low and high frequencies enhance controls

  • parallel compression

  • upward compression

  • mid-side compression

NEW Bus v.2 available now!

CUTTERTONE

Vinyl cutting pre-processing

A mastering effect or a mixing tool

  • bass frequencies stereo width (make bass mono for a better image)

  • "acceleration limiter" (controls the amount of high frequencies)

  • general dynamics control

  • Mid/Side balance

available now...

PRESENCE

A fistful of exciters, smooth hipass, delicate tilt

available now...

VERBTONE

Simply a plate reverb.

Physical modeling, non linear behaviour, multi-mode modulation.

Dual stereo, mono to stereo, mix to mono to stereo, split stereo.

Use it as a clean, dense reverb or stress it.

Tap on the plate to hear the impulse response and tune the reverb.

available now...

NECKLACE

Simply a spring reverb.

Physical modeling, non linear behaviour, multi-mode modulation.

Several springs, several combinations (parallel, series, Z-link).

Round, nice reverb or "twisted" effects.

Tap on the springs to hear the impulse response and tune the reverb.

available now...



FD4

- multiple parallel compression



Retoone

- pitch shifting

- choir

- stereo chorus



Unpolite

- lead "attitude" desktop synth



Baz

- bass saturation

- compression

- drive



KickHaas

- stage placement



Harmful

- drums "attitude" desktop synth



Dyna

- channel strip

- dynamic eq

- multiband exciter



Specter

- full mastering system with K-stereo



Shy

- pads "attitude" desktop synth




Verbera

- reverb

- mastering gloss



Fild

- stereo widening

- stereo image

- phase equalizer



Bully

- bass "attitude" desktop synth




Q796

- compressor

- expander

- limiter



Kitz

- multitrack drumkit player



Attackease

- attack and sustain splitting

- midi output
